• Body, standard
• Rear wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Frame, full-length box ladder-type
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle
• Door, swing-out passenger-side, 60/40 split
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Bumpers, front and rear painted Black with step-pad
• Headlamps, dual halogen composite
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers

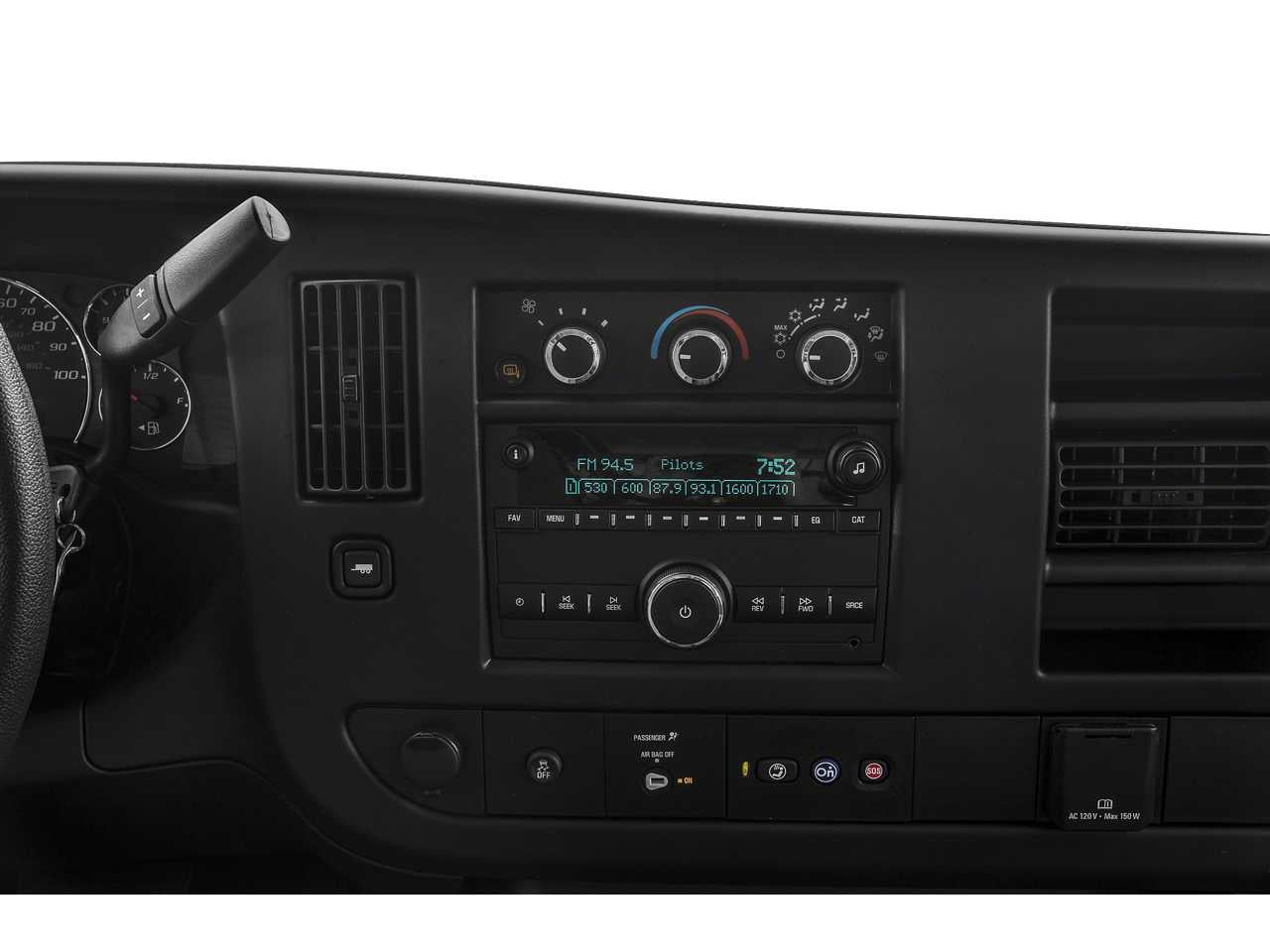

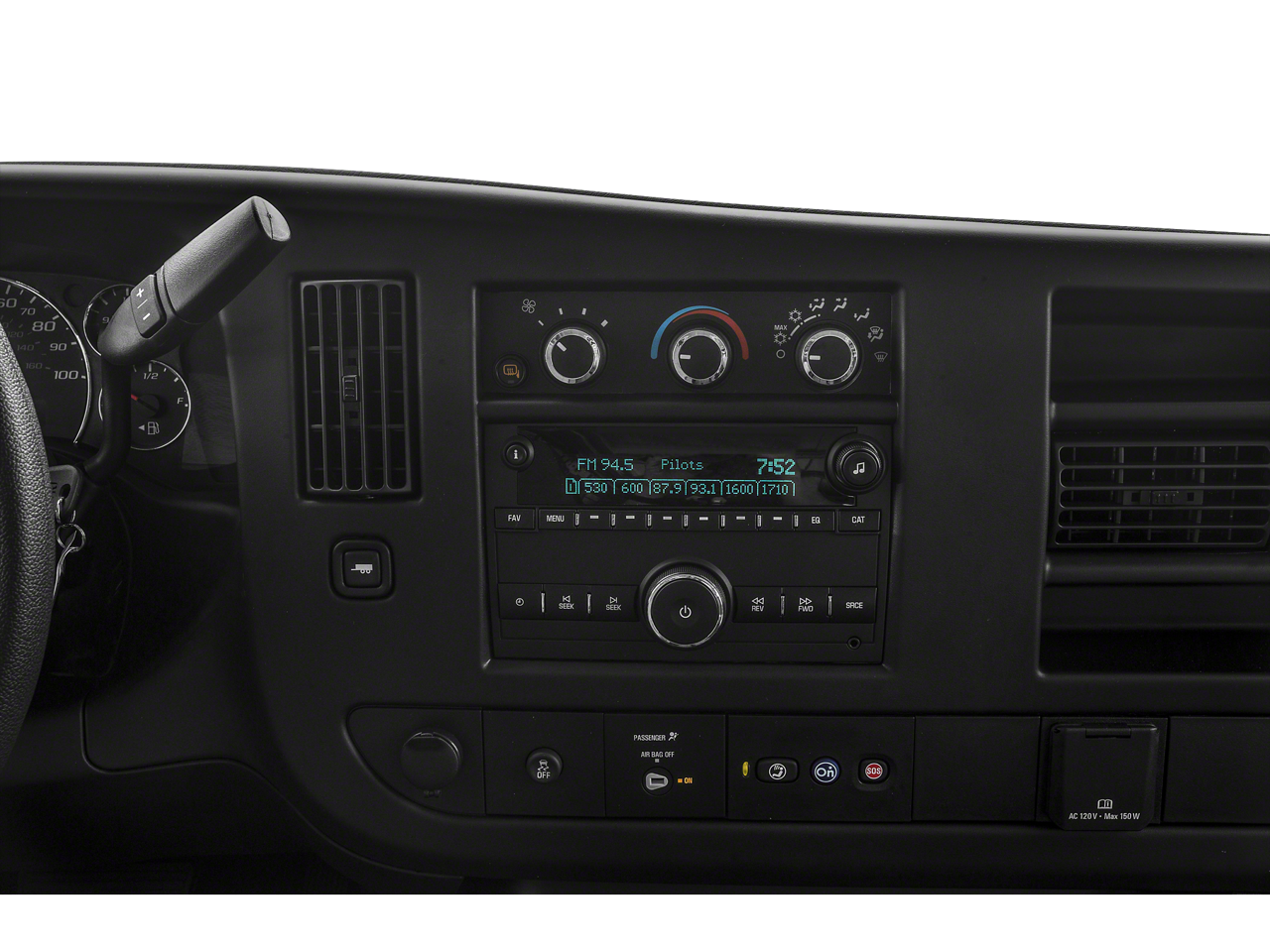

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio, (5BV) Upfitter electrical provisions or (WP9) Communications Package.)
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first) (Included and only available with (UE1) OnStar. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)

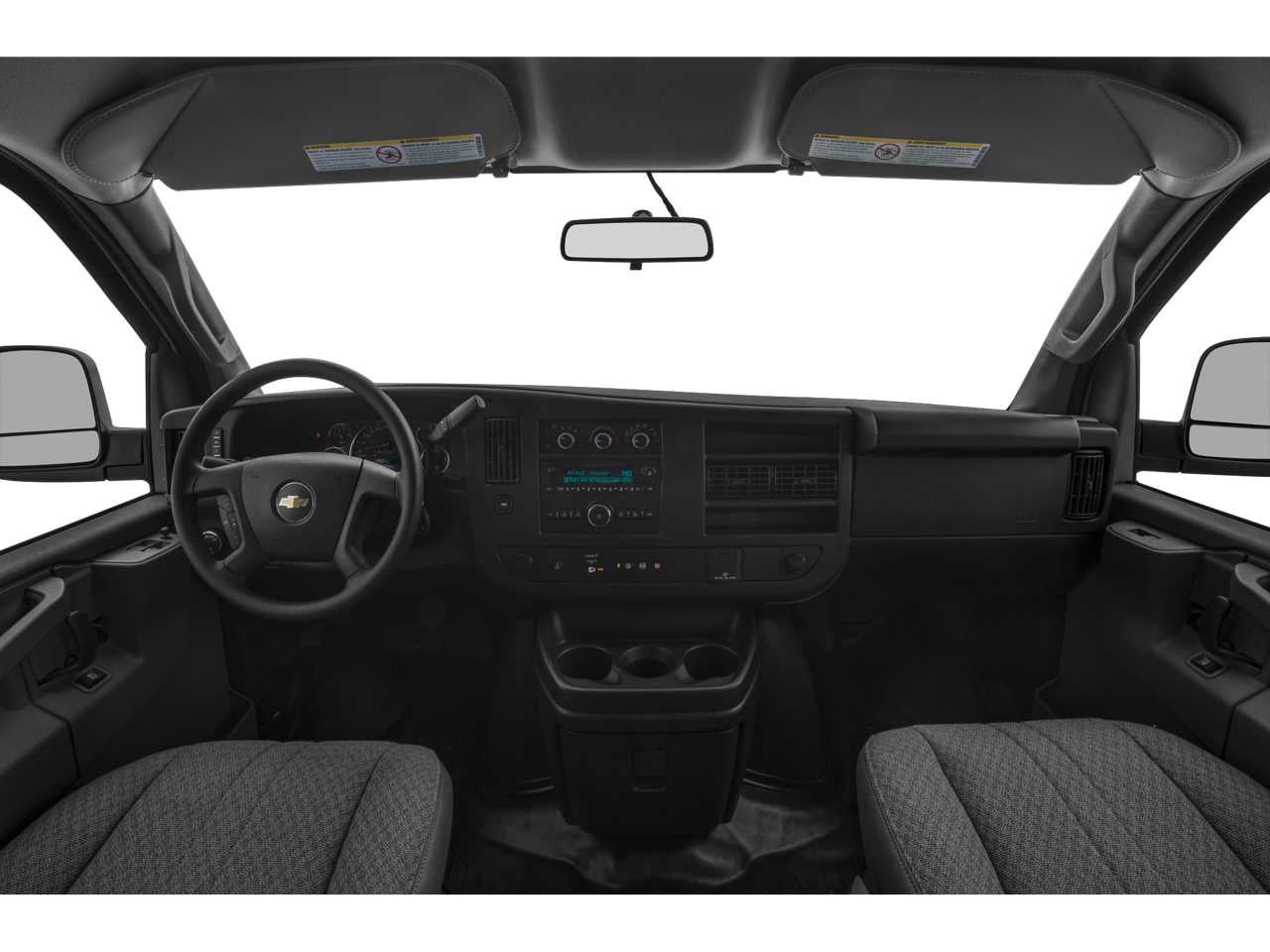

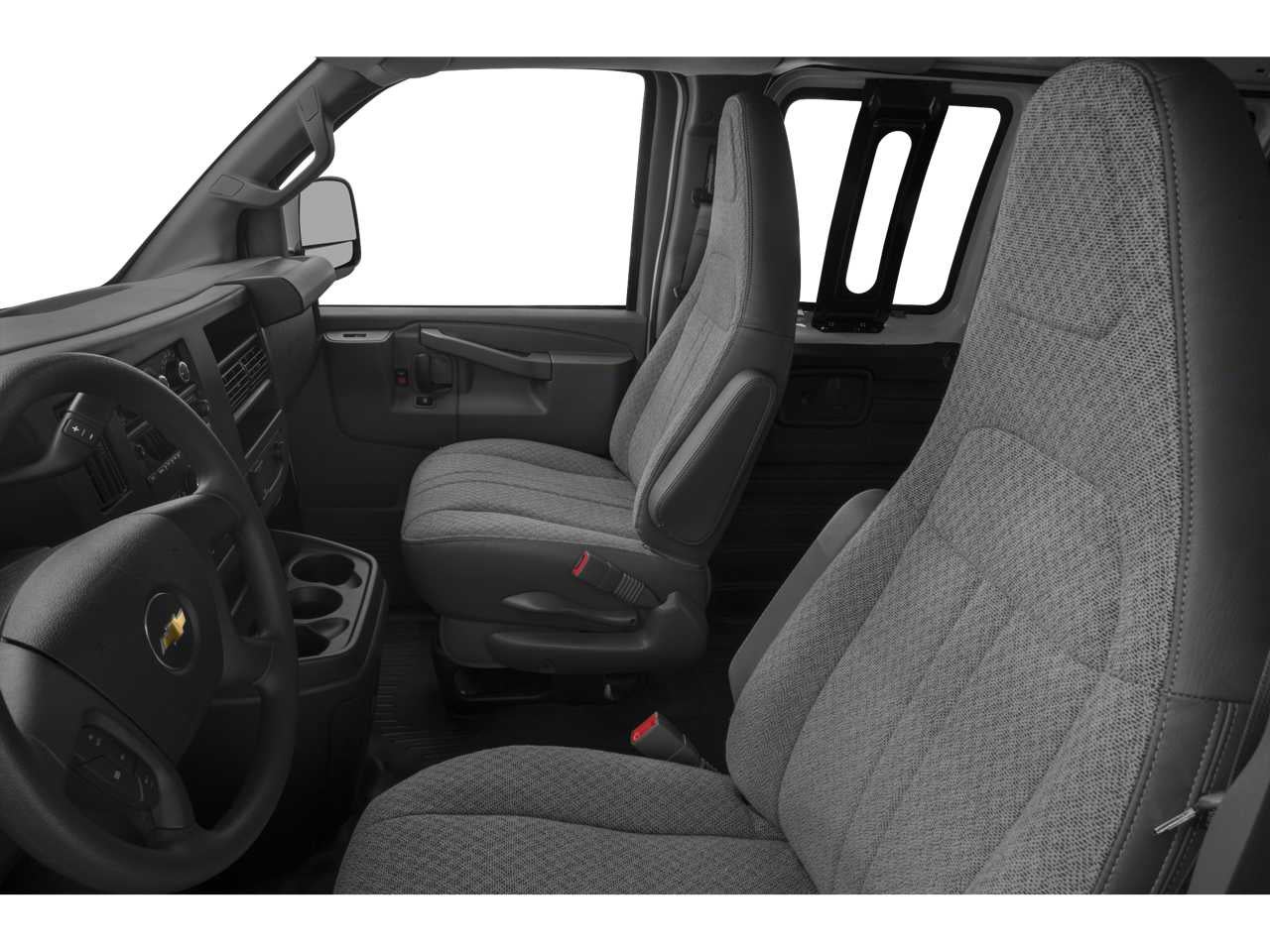

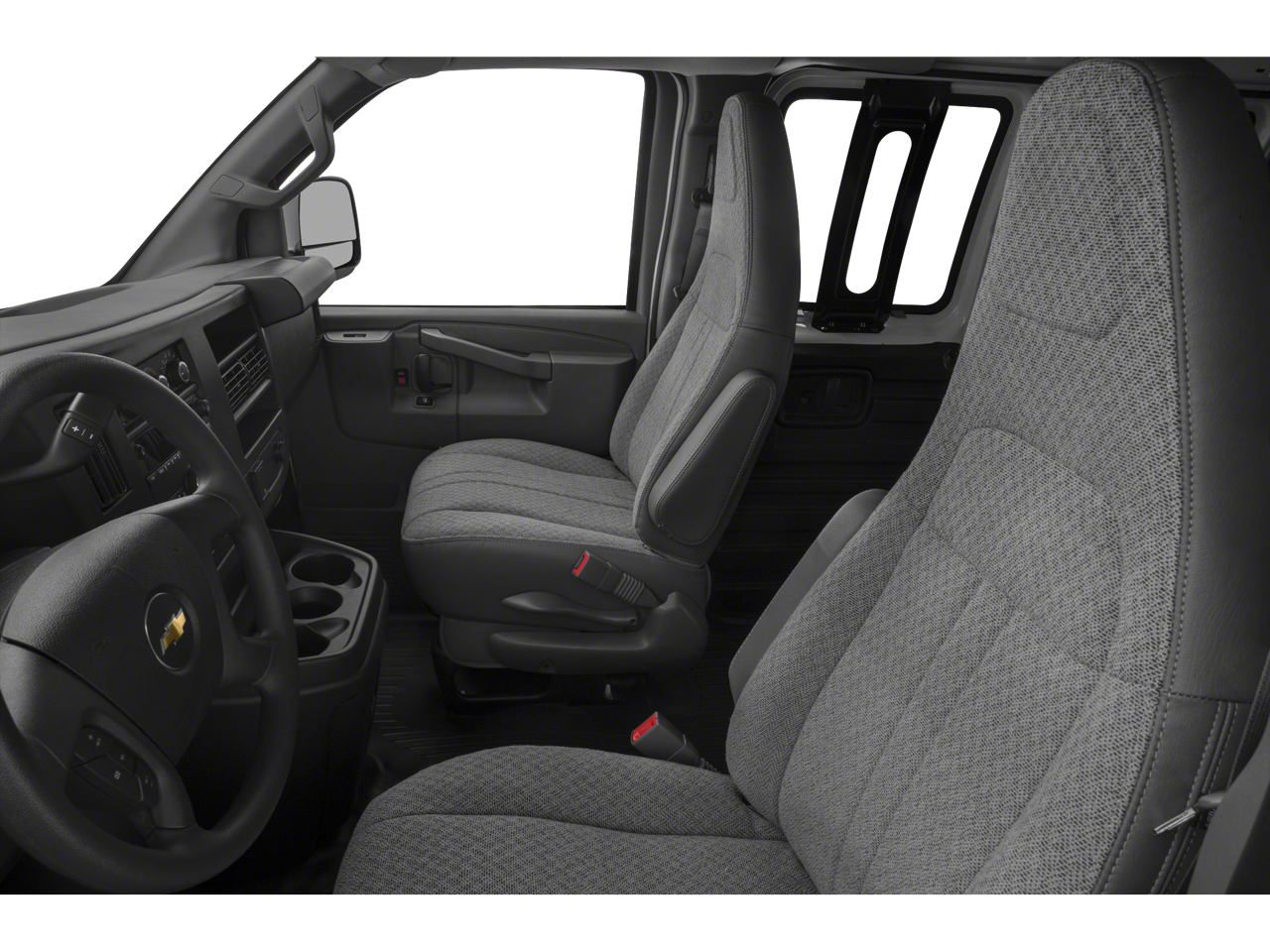

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim. Includes (DAA) driver and front passenger vinyl visors.)
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)

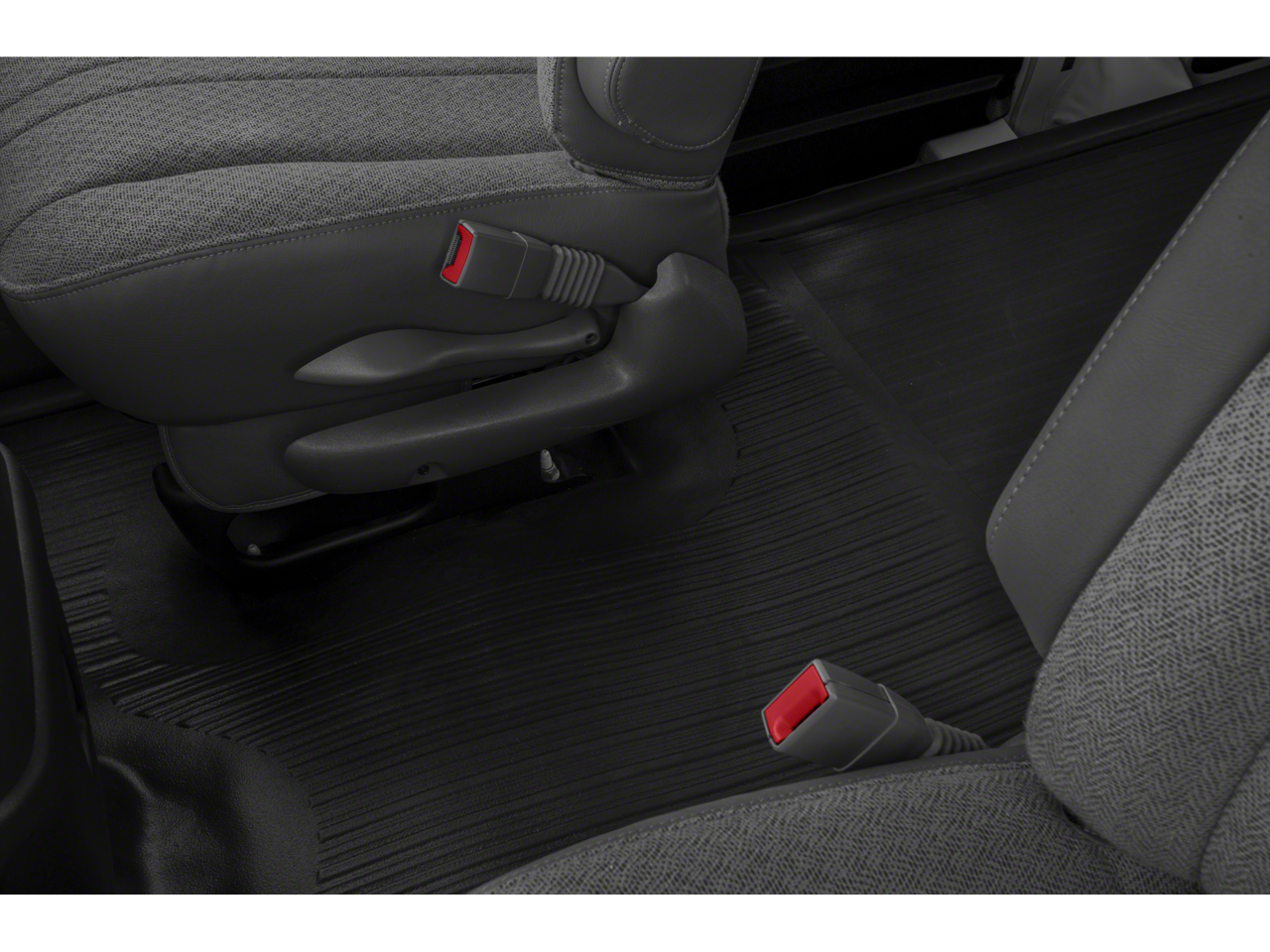

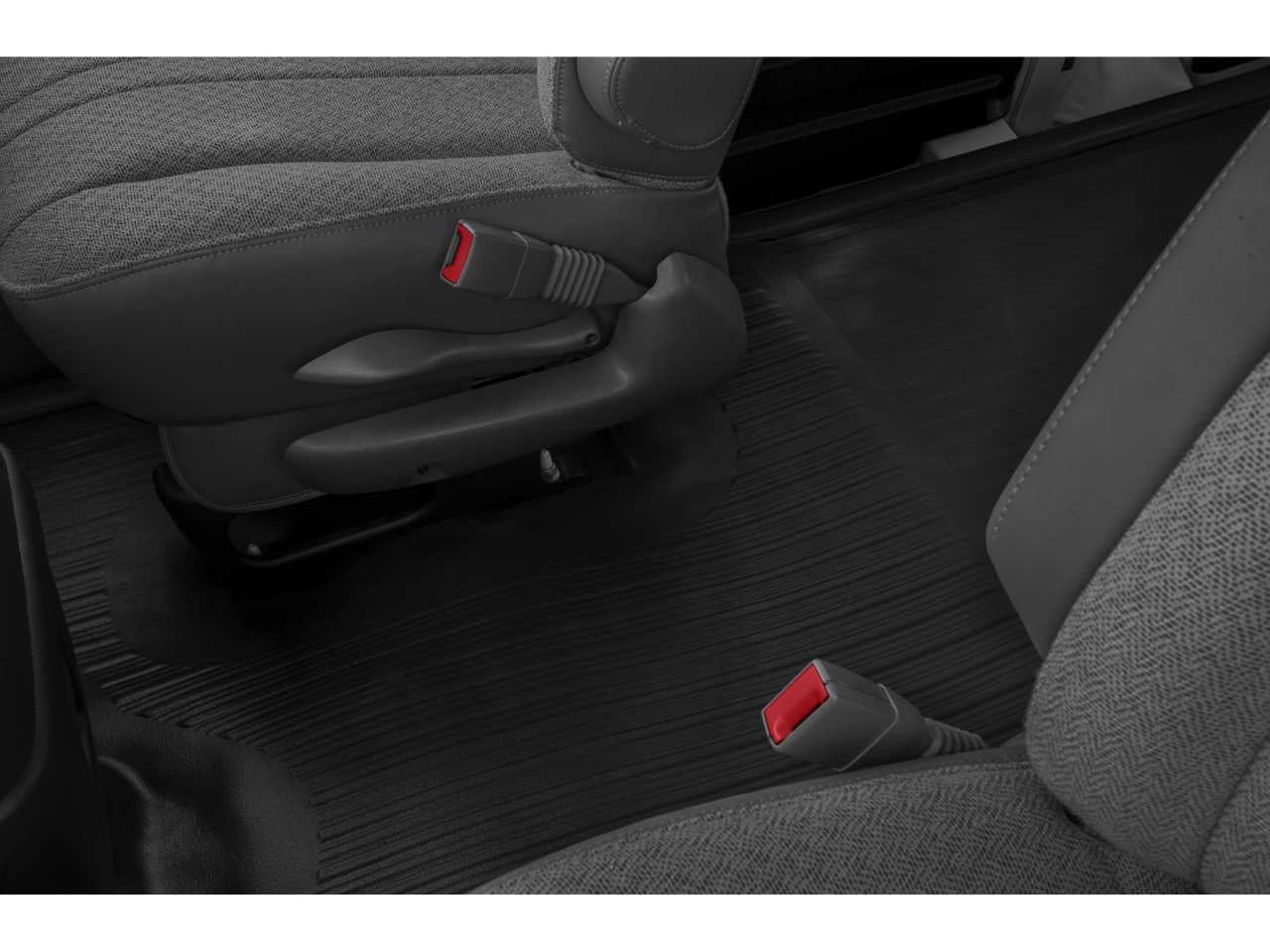

• Floor covering, full-length Black rubberized-vinyl (Not available with (RFM) rear floor covering delete, (5BV) Upfitter electrical or (PCH) Hotel Shuttle Package.)

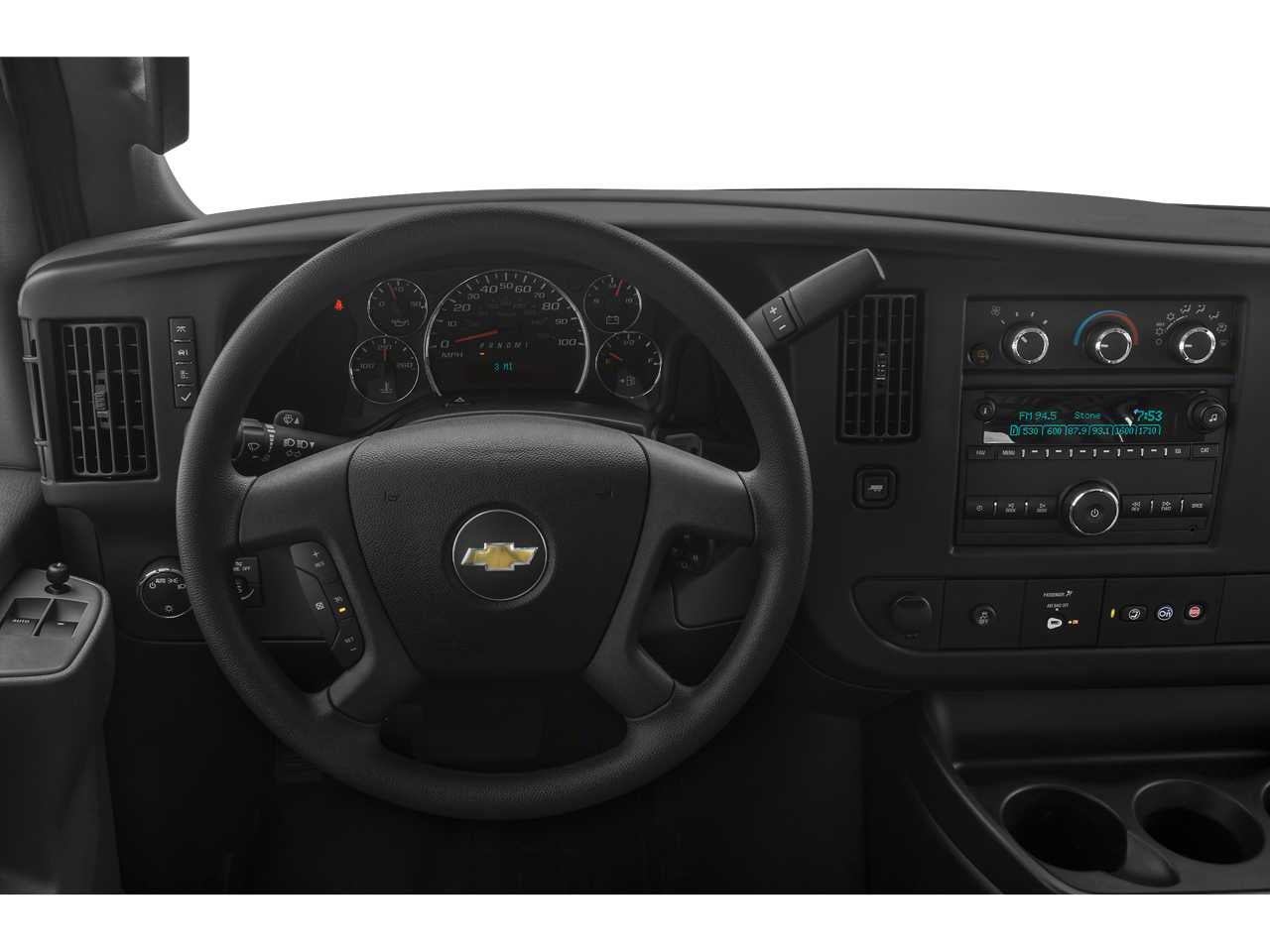

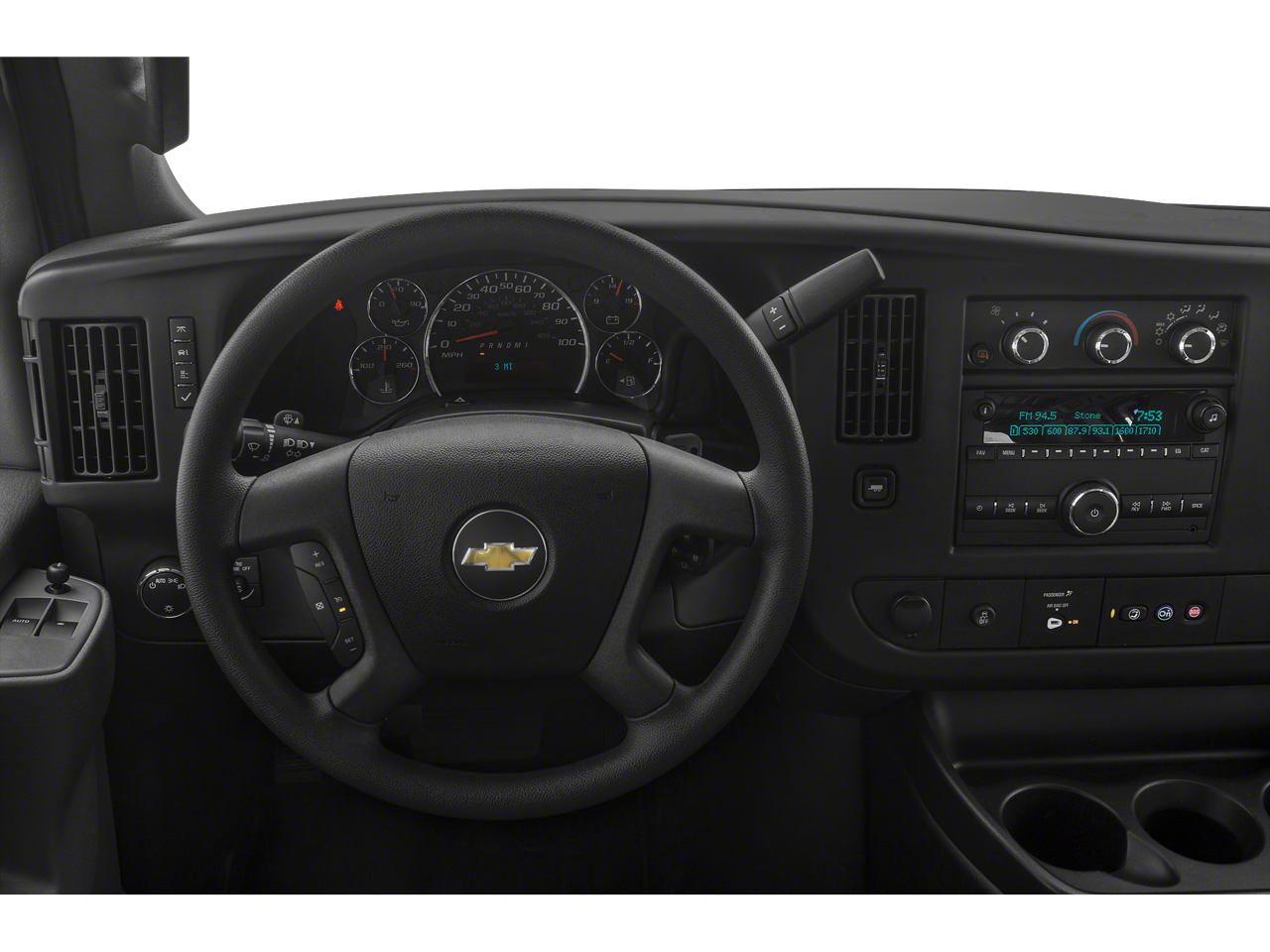

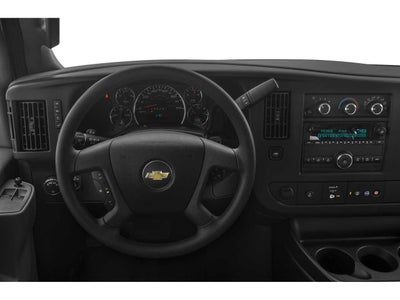

• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Door locks, power with lock-out protection (Included with (ZQ2) Power Convenience Package. NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Windows, power (Included with (ZQ2) Power Convenience Package.)
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Power outlet, 120-volt
• Trim panels, hinged rear side doors and hinged rear doors (Not available with (Y3H) Paratransit Package or (5BV) Upfitter electrical provisions.)
• Mirror, inside rearview includes Rear Vision Camera display
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handles, driver and right-front passenger
• Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches
• Cargo tie-downs 6 D-ring attachments on cargo area floor (Not available with (Y3H) Paratransit Package, (5BV) Upfitter electrical provisions or (ZP6) 5-passenger Express Crew Van.)

• Hill Start Assist
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Airbags, frontal, driver and front passenger (Includes passenger-side airbag deactivation switch. Included with (ZX2) driver and front passenger high-back bucket seats or (ZP6) 5-passenger Express Crew Van Package. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, driver and right-front passenger, seat-mounted side-impact and roof-rail side-impact (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) driver only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Not available with (UXZ) radio provisions only. Fleet orders receive a 3-month trial. Visit onstar.com for coverage map, details and system limitations. Services vary by model.)
• Chevrolet Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, Chevrolet Smart Driver, Marketplace and more (Included and only available with (UE1) OnStar. Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Chevrolet vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)
• Rear Vision Camera display integrated into rearview mirror (Display included with (DRJ) inside rearview mirror.)
• Tire Pressure Monitoring System (does not apply to spare tire)

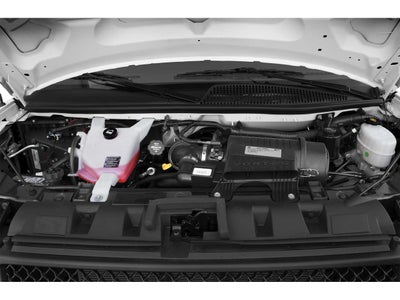

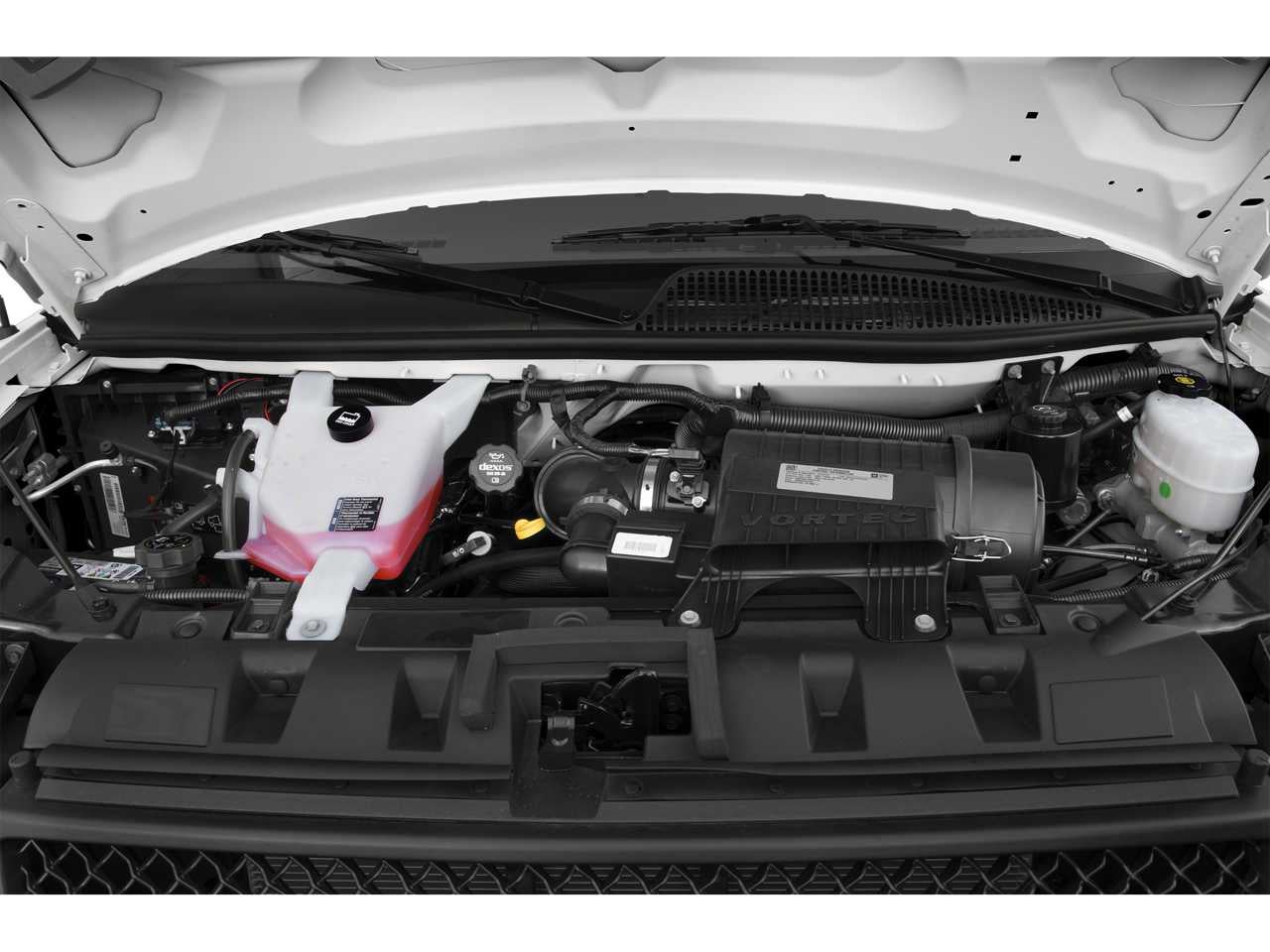

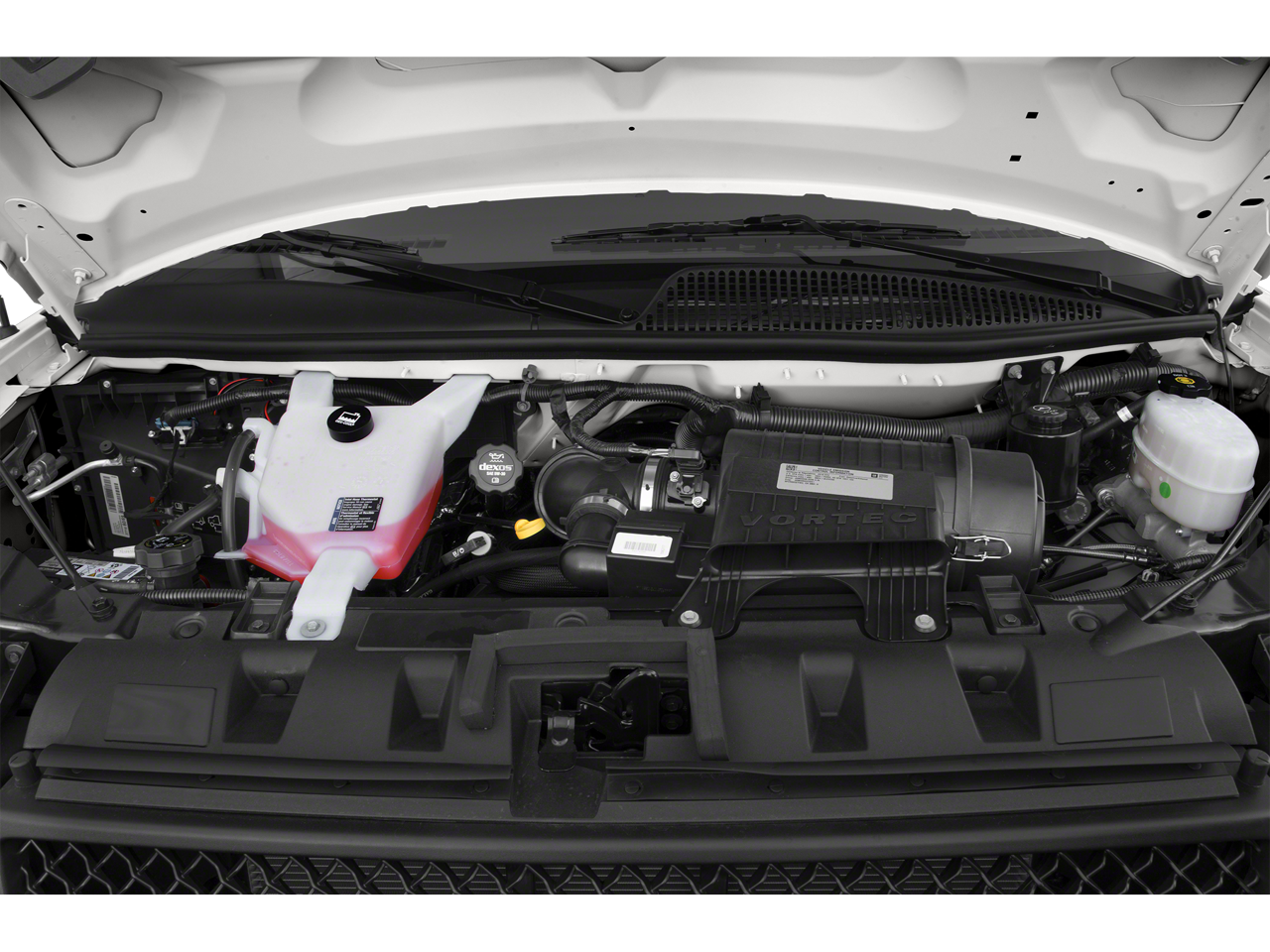

ENGINE, VORTEC 6.0L V8 SFI FLEXFUEL

• (341 hp [254.3 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (Includes external engine oil cooler.

• ATG
• C69
• DE5
• G80
• L96
• MYD
• U0F
• W1Y
• Z82
• ZQ3

• Vehicle
• Rear Door Type: Dual Swing-out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 2930
• Curb Weight - Rear (lbs): 2227
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 740
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135
• Length, Overall (in): 224.1
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 84.6
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.8
• Ground Clearance, Front (in): 11
• Ground Clearance, Rear (in): 7.1
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.3
• Step Up Height - Side (in): 20.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 124.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 52.9
• Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Summary

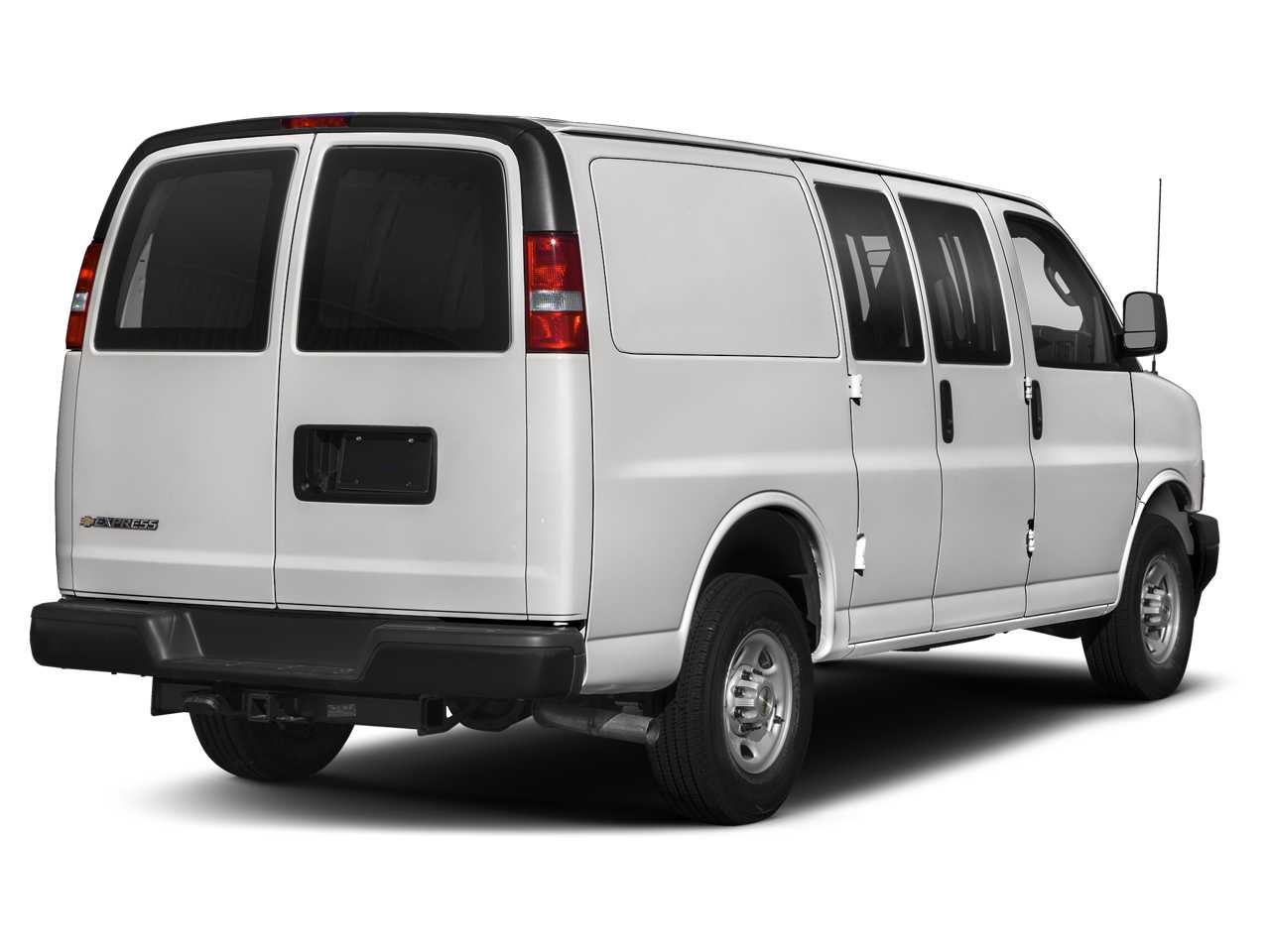

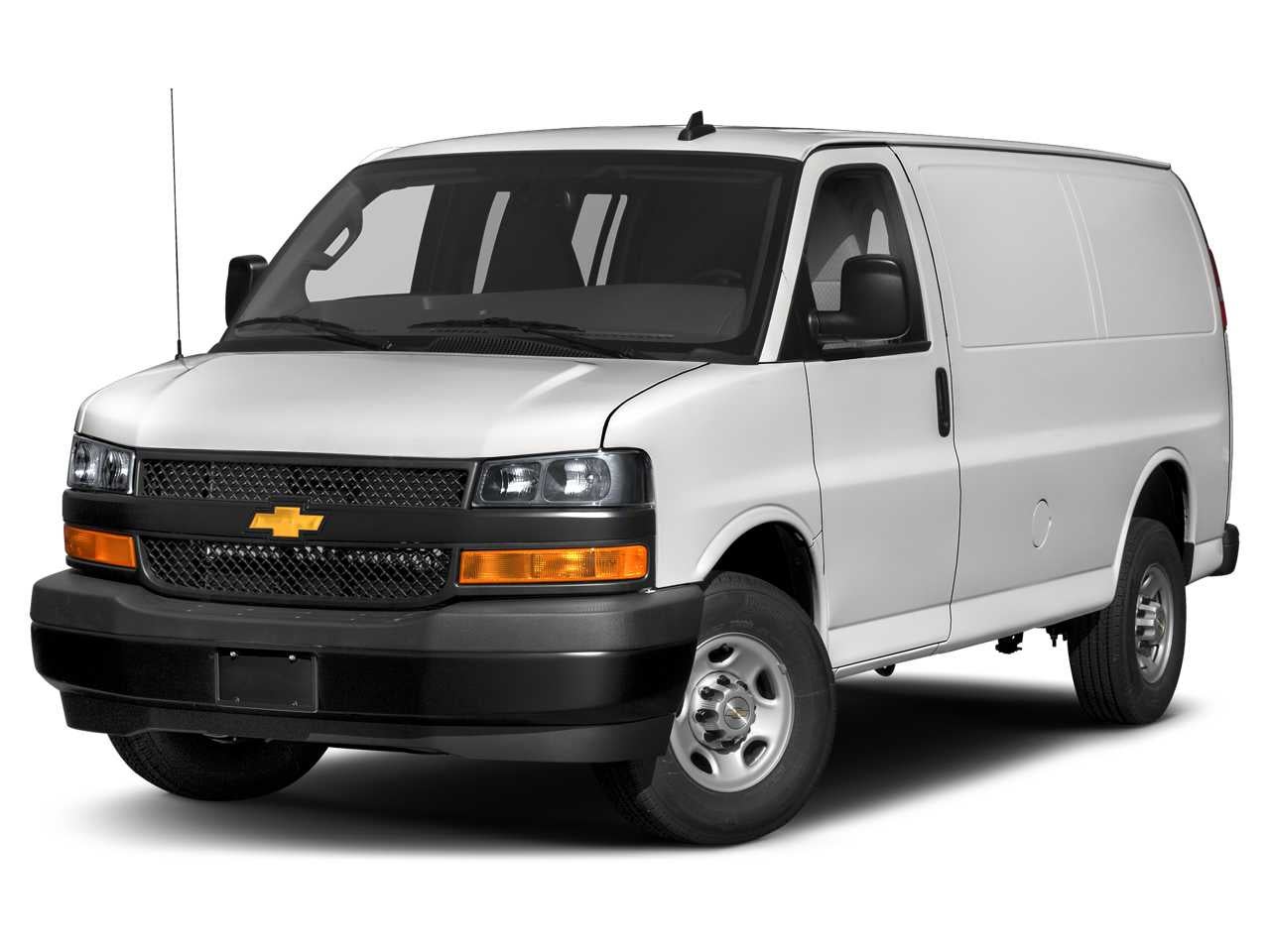

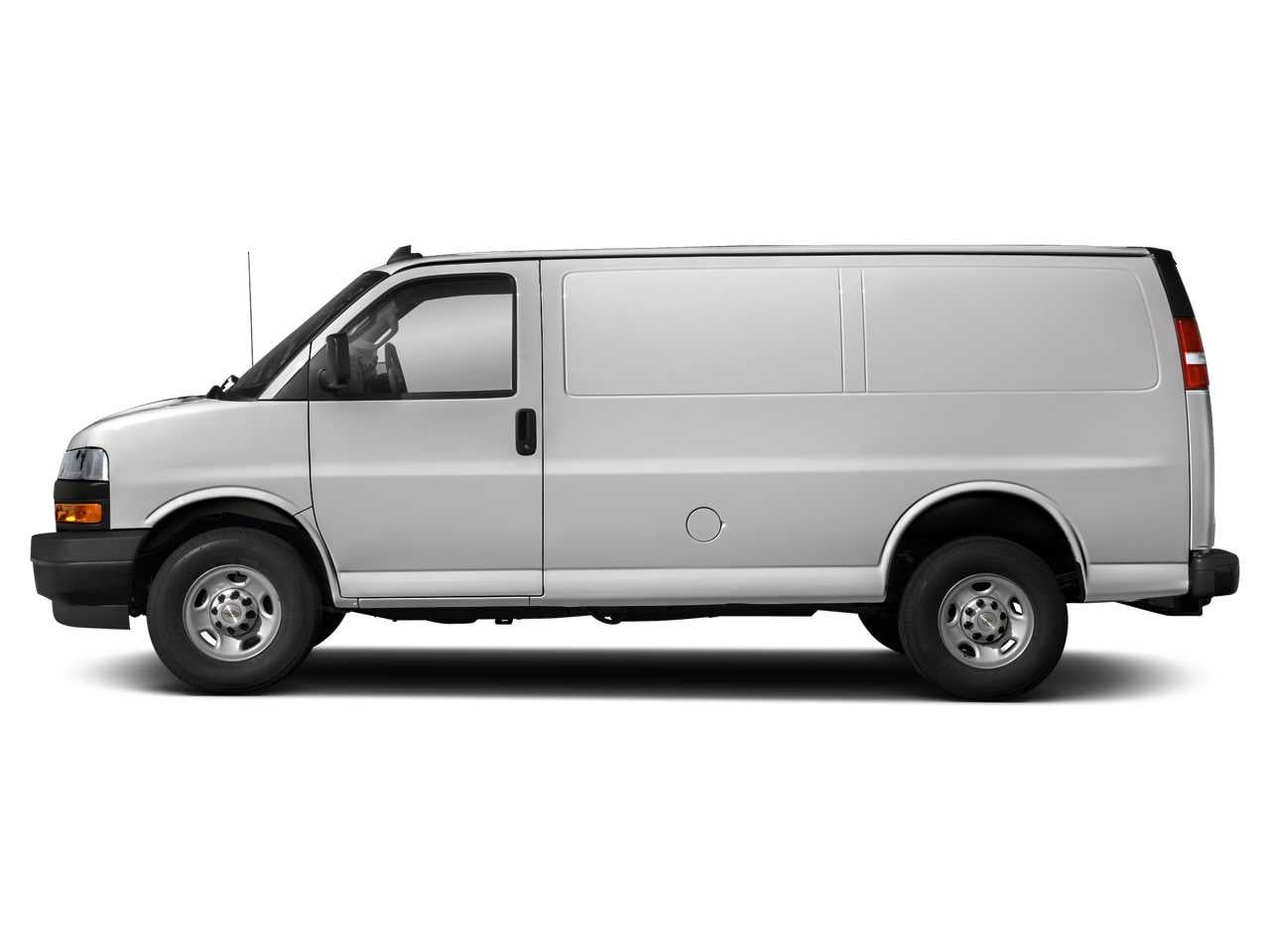

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
