• Alternator, 120 amps
• Battery, maintenance free with rundown protection, 525 CCA
• Chassis, all-wheel drive (1LM26 model only.)
• Suspension, front independent MacPherson strut with stabilizer bar, optimally-tuned shocks and hydraulic-ride bushings in front control arms
• Suspension, rear independent mult-link with hydraulic rear trailering arm links and stabilizer bar
• Suspension, Refined Ride
• Steering, power-assist, electric-variable
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, single

• Tires, P225/65R17 all-season, blackwall (Included and only available with (PFF) 17" (43.2 cm) painted aluminum wheels.)
• LTZ Exterior Appearance includes body-color bumpers with bright lowers, Charcoal luggage rails with bright chrome insert, bright chrome door handles, chrome outside mirrors and 17" aluminum wheels
• Tire, compact spare with steel wheel
• Luggage rack side rails, roof-mounted, Charcoal (Charcoal with bright chrome insert.)
• Luggage rack center rails
• Bumpers, front and rear, body-color with bright front and rear lowers
• Moldings, Charcoal lower rocker
• Grille, Charcoal with chrome surround
• Headlamps, halogen, uplevel projector style with automatic exterior lamp control
• Fog lamps, front halogen
• Glass, deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Mirrors, outside heated power-adjustable, chrome, manual folding
• Wipers, front variable-speed, intermittent with washer.
• Wiper, rear variable-speed, intermittent with washer
• Liftgate, power programmable rear with fixed glass
• Door handles, bright chrome

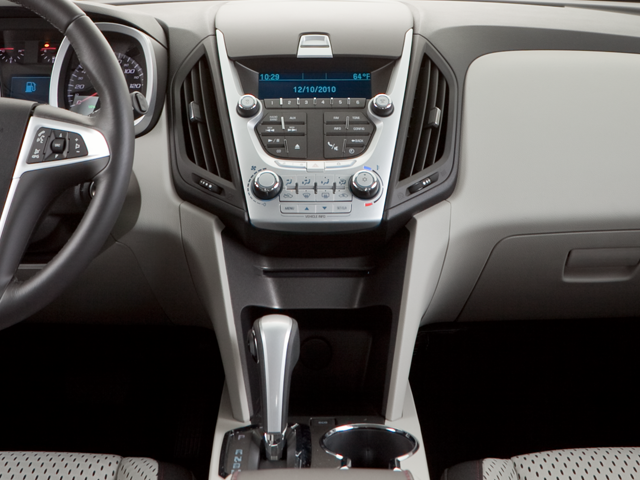

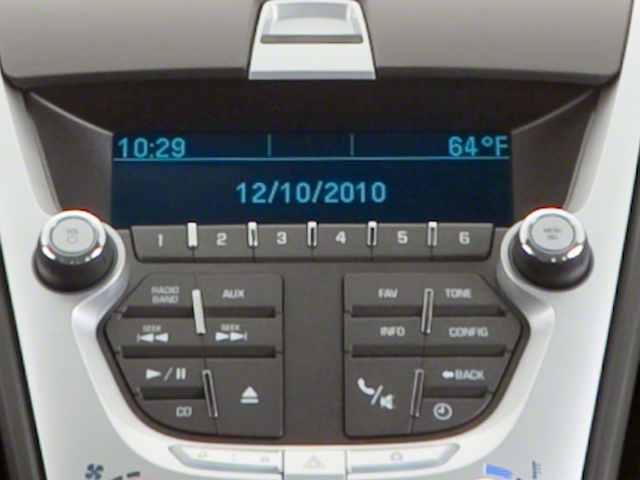

• Audio system, AM/FM/XM stereo with CD player and MP3/WMA playback capability, Graphic Interface Display (GID), Radio Data System (RDS), speed-compensated volume, auxiliary input jack and outside temperature display (May be upgraded to (PCN) Audio system with Rear Entertainment, (PCJ) Audio system with Navigation/Infotainment or (PDB) Audio system with Navigation/Infotainment and Rear Entertainment.)
• Audio system feature, Pioneer premium 250-watt 8-speaker system includes mid-range speakers in each door, tweeters in A-pillars, a center channel speaker in upper IP and sub-woofer on the rear shelf.
• Audio system feature, auxiliary input jack
• Audio system feature, USB port
• XM Radio is standard on nearly all 2011 GM models and includes 3 months of trial service. Get over 170 channels, including: commercial-free music, sports, news, talk, entertainment, comedy, family and kids' channels, and much more. With XM's incredible range of programming, everything worth listening to is on XM (Requires a subscription sold separately by XM after the first 90 days. Available only in the 48 contiguous United States and District fo Columbia. Visit gm.xmradio.com for details.)
• Antenna, roof-mounted
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) (Included and only available with (UE1) OnStar.)

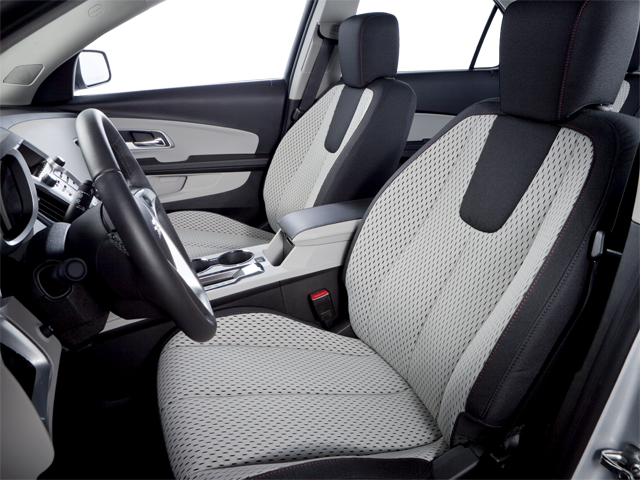

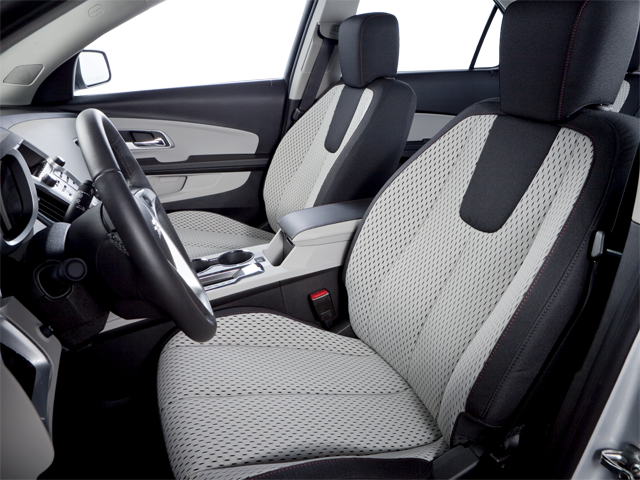

• Seats, Deluxe front bucket
• Perforated leather-appointed seating
• Seats, heated driver and front passenger
• Seat adjuster front, driver 8-way power with power lumbar

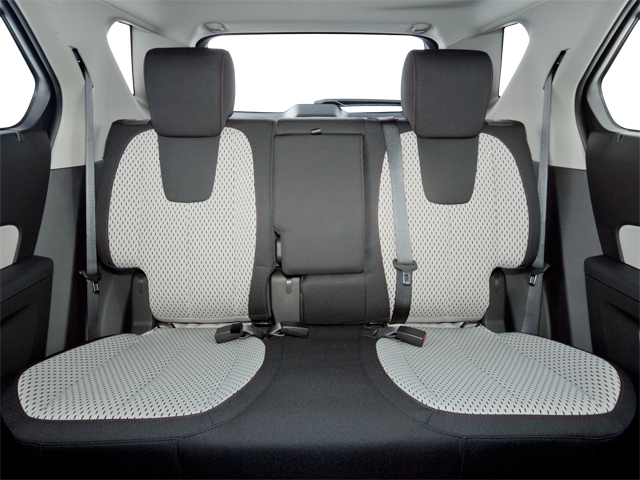

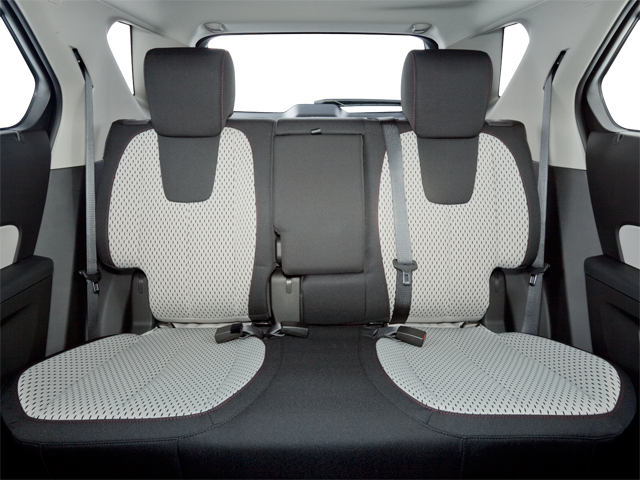

• Seat, rear, 2-way fore/aft adjustment with 60/40 split seatback and 3-way recline
• Memory settings for the driver seat and exterior mirrors

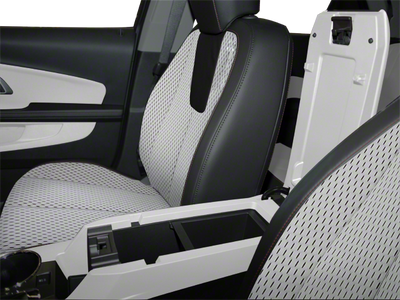

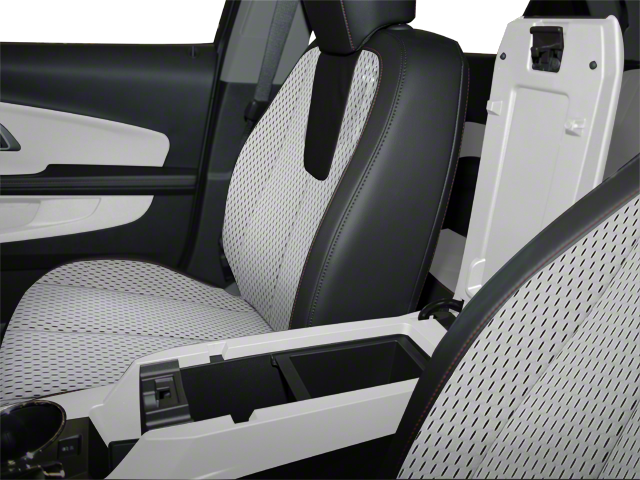

• Console, center with armrest and concealed storage
• Armrest, rear center with dual cup holders
• Floor mats, carpeted first and second row

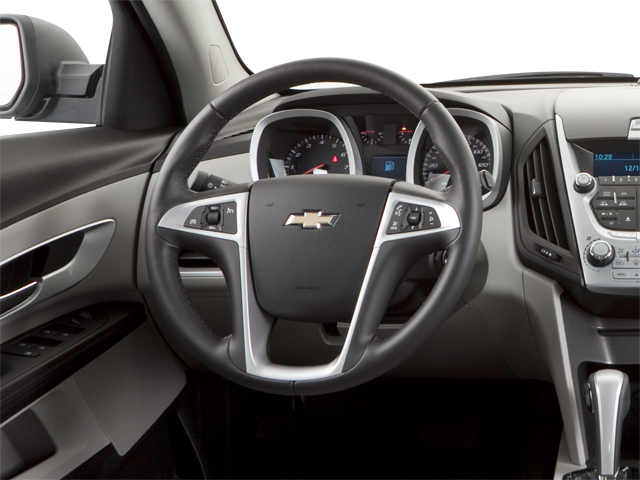

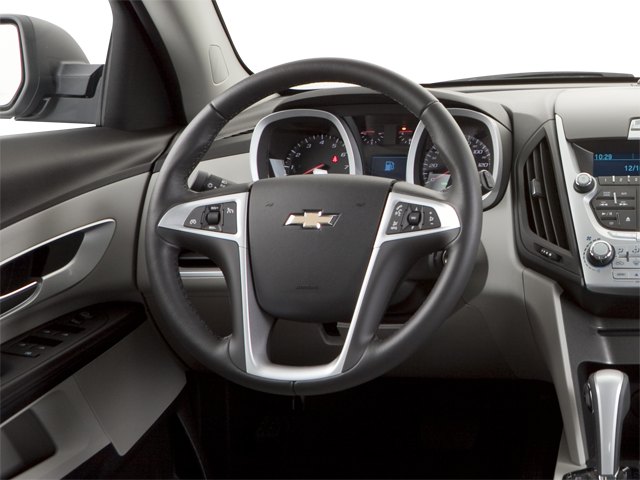

• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio controls
• Steering column, tilt and telescopic
• Driver Information Center monitors 26 various systems including, Vehicle Information Menu (oil life, tire pressure, standard/metric units), Trip Information Menu (trip 1, trip 2, fuel range, average fuel economy, instant fuel economy, average vehicle speed) and compass display
• Compass display included in Driver Information Center (DIC) (Not available with (UE0) OnStar delete.)

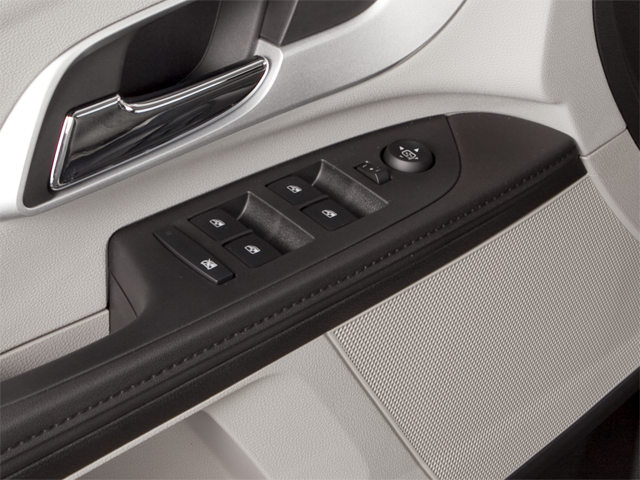

• Windows, power with Express-Down on all 4 doors
• Door locks, power programmable with power lockout protection
• Remote Keyless Entry with 2 transmitters, panic button, content theft alarm activation verification and illuminated entry
• Remote vehicle starter system
• Cruise control, electronic with set and resume speed
• Air conditioning, automatic climate control
• Defogger, rear-window electric
• Cupholders, 2 front in center console and 2 rear in center armrest with 1 bottle holder in each door
• Power outlets, 4 auxiliary with covers, 12-volt includes 1 front of console, 1 in console, 1 in back of console and 1 in cargo area.
• Mirror, inside rearview self-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handles, front passenger and rear outboards
• Map pocket, front seatback, driver and front passenger
• Lighting, interior with theatre dimming, center-mounted dome, rear cargo area, dual front map lights, ambient lighting on center stack surround, and center console cupholders (Includes ambient lighting on instrument panel, center console, door handle recess, door storage and footwell.)
• Cargo cover, rear security cover
• Cargo net, full-across rear
• Rearview camera system, display integrated into self-dimming rearview mirror (Rearview camera display only included in navigation radio screen when (PCJ) Audio system with Navigation/Infotainment or (PDB) Audio system with Navigation/Infotainment and Rear Entertainment is ordered.)

• Brakes, brake assist
• Brakes, Hill Start-Assist (HAS)
• Traction control
• StabiliTrak, electronic stability control system
• Daytime Running Lamps
• Air bags, dual-stage, frontal, driver and right front passenger with passenger sensing system, Thorax side-impact, seat mounted, driver and right front passenger, head curtain, side front and rear outboard seating positions (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bag Passenger Sensing System, sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock, Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)
• Automatic Crash Response
• Stolen Vehicle Assistance
• OnStar Turn-by-Turn Navigation
• Rear Parking Assist
• Safety belts 3-point, driver and right-front passenger, height-adjustable includes pretensioners
• Safety belts, 3-point, rear, all seating positions
• Door locks, power operated rear child security
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor System (Does not monitor spare.)

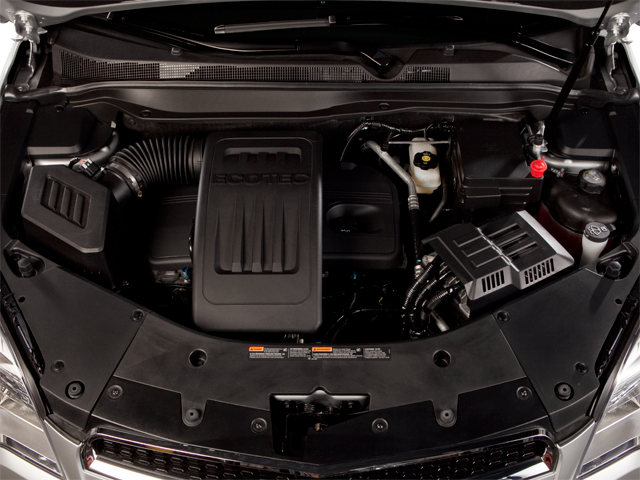

ENGINE, 3.0L DOHC, V6 SIDI (SPARK IGNITION DIRECT INJECTION)

• with VVT (Variable Valve Timing) E85 capable when ordered with (FE9) Federal emissions
• 264 hp [196.8 kW] @ 6950 rpm
• 222 lb-ft [299.7 N-m] @ 5100 rpm)

• LFW
• MX0
• PCJ
• Q6D

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicle
• Mileage
• Fuel Economy Est-Combined (MPG): 19
• Fuel Economy Est-Combined (MPG): 23
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 20
• EPA Fuel Economy Est - Hwy (MPG): 22
• EPA Fuel Economy Est - Hwy (MPG): 29
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 615
• Cold Cranking Amps @ 0° F (Primary): 525
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Capacity (amps): 120
• Cooling System
• Total Cooling System Capacity (qts): 10
• Total Cooling System Capacity (qts): 8.9
• Weight Information
• Base Curb Weight (lbs): 4198
• Base Curb Weight (lbs): 3987
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Dead Weight Hitch - Max Tongue Wt. (lbs): 150
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 525
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 225
• Suspension
• Suspension Type - Front: Independent Strut-type
• Suspension Type - Rear: Independent Trailing arm
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.6 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 11.9 x 0.78
• Tires
• Front Tire Order Code: QYZ
• Rear Tire Order Code: QYZ
• Front Tire Size: P225/65R17
• Rear Tire Size: P225/65R17
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Variable power assist
• Steering Ratio (:1), Overall: 17.4
• Steering Ratio (:1), Overall: 18.1
• Lock to Lock Turns (Steering): 3.46
• Turning Diameter - Curb to Curb (ft): 40.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 20.9
• Fuel Tank Capacity, Approx (gal): 18.8
• Exterior Dimensions
• Wheelbase (in): 112.5
• Length, Overall (in): 187.8
• Width, Max w/o mirrors (in): 72.5
• Height, Overall (in): 66.3
• Track Width, Front (in): 62.5
• Track Width, Rear (in): 61.8
• Min Ground Clearance (in): 7.8
• Rear Door Opening Height (in): 28.8
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): 28.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 63.7
• Cargo Volume to Seat 2 (ft³): 31.4
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 99.7
• Front Head Room (in): 40.9
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 55.8
• Front Hip Room (in): 51.1
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.9
• Second Shoulder Room (in): 55.3
• Second Hip Room (in): 51.3
• Summary

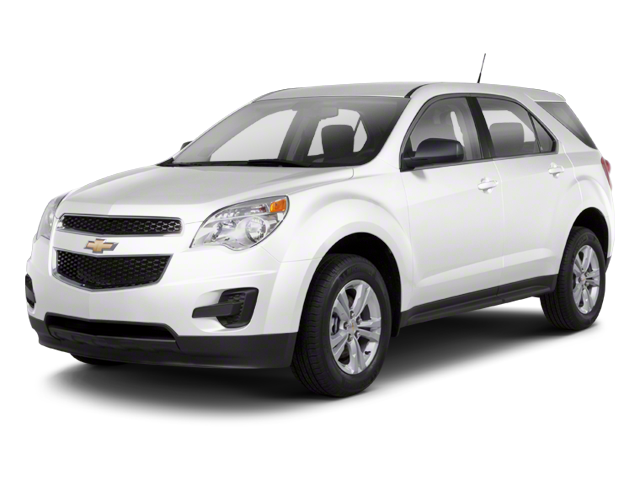

• Vehicle Name: Chevrolet Equinox
• Body Style: 4 Door
• Emissions
• EPA Greenhouse Gas Score: 3
• EPA Greenhouse Gas Score: 5
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.1
